RAKES

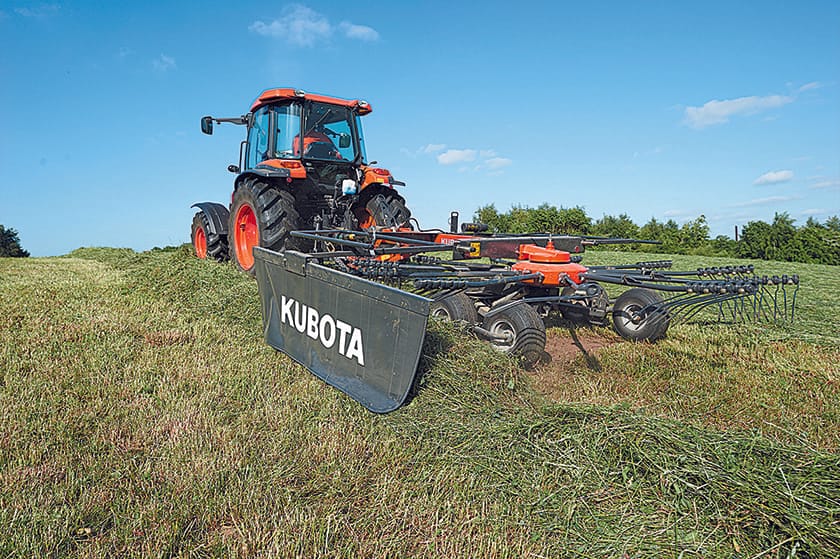

Thanks to a low center of gravity and high performance tine arms, the Kubota RA1047T amplifies your efficiency! This Kubota rake features exceptional maneuverability, letting you make tight turns on headlands and maximize your swathing, even in awkwardly-shaped fields. Easily set your rotor height, transport your rake and increase your precision in the field with the Kubota RA1047T!
The Kubota RA1035 width can be reduced to 5'9" for transport and storage by placing the tine arms on the carrier frame. The Kubota RA1042T can be easily converted to 6’7” for transport and entering into smaller fields or narrow gates.
The Kubota rakes are equipped for maximum raking performance. The FarmLine rakes all feature 9mm wire diameter tines for outstanding durability.
Kubota's FarmLine rakes feature oil-immersed cam discs, guide rollers and tine bearings, making them low maintenance. All rakes are fitted with curved tine arms, to ensure a regular and even swath formation in all crop conditions. Additionally, the curved shape increases the tine working area as the rake is moving and allows a higher lift out of the swath, which is critical in high volume crops, ensuring a very uniform swath. Our expert knowledge in producing the right swath not only optimizes the capacity of the baler, but also increases the quality of the forage.
All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath.
The Kubota RA1035 and RA1042T single rotary rakes are designed for low power requirements, while still delivering considerable working width of 9’2” & 11'6" with swath and 10’2” on the RA1042T & 13’9” including swath, respectively. With a pivoting three point linkage machine (RA1035) as well as a trailed version (RA1042T), there is a model to meet any field or crop needs.
The trailed RA series is designed to work in a variety of crop conditions. The twin rotors work independently from each other, making it possible to collect either one large swath or two smaller swaths. Alternatively, the rake can place two large swaths into one, allowing for a total of up to 41’ crop to be gathered into one swath.
The rotor is grease lubricated within a fully enclosed housing. The maintenance-free cam track, cam followers, as well as the bearings of the rotor star axles, are permanently running in an oil bath. Both the rotor and pinion shaft are mounted on two bearings for maximum strength and long service life.
Trailed RA series machines come standard with tandem axles.
Up to eleven tangential tine arms and four double tines per arm provide high tine frequency to ensure clean raking performance in all types and volumes of crops.
All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath.
To limit transport height further, the tine arms can be removed. The swath board folds up automatically. All tine arms including housing can be removed individually by just removing 3 bolts.
Compare models.
RA1047T
HP
Capacity Theo. ( Acres/h)
Carrier Arm Compensating
Continuous Cam Track
Detachable Tine Arms
Farm Line
Fixed Tandem Axle
Gauge Wheel 16"
Height Adjustment
Linkage Drawbar
Locking Catch For Slopes
Lower Links (2-pt.)
Number Of Arms Per Rotor
Number Of Double Tines/ Arm
Number Of Rotors
Parking Height Ft.
Pivoting 3-pt Headstock (cat.)
Pivoting Tandem Axle
Pro Line
Road Lights
Rotor Diameter Ft.
Stand. Tires ( Carrying Frame)
Swath Delivery
Tine Diameter In.
Tires ( Rotors)
Transport Length Ft. (m)
Transport Width Ft. (m)
Warning Panels
Weight Lbs. (kg)
Working Width Ft. (m)
11.4
N/A
N/A
Standard
Standard
Standard
Optional
Mechanical
Standard
N/A
N/A
11
4
1
7' 7"
N/A
N/A
N/A
Optional
11' (3.4)
N/A
Left
.35"
18.5x8.5-8
13' 2"
6' 7"
Optional
1257 (570)
13' 9"
