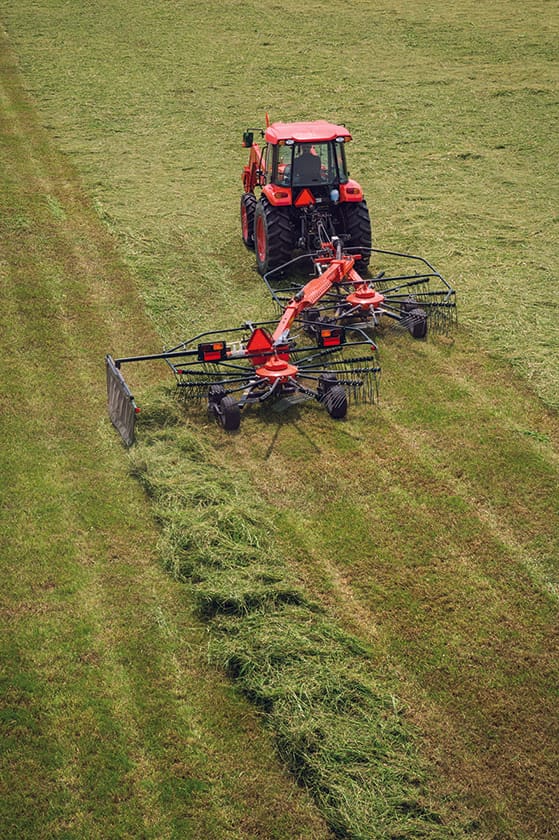

The RA2071T EVO has a working width of up to 23'3" in double swath position and has features like the Kubota TerraLink flex system and curved tine arms. Independently working twin rotors provide the option to rake the crop into a single swath or two individual swaths, giving you choices for optimum dry time. The high ground clearance makes headland turning no problem over existing swaths, and the reduced width makes transportation easy.

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • RAKE SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!

    RAKE SERIES
Easy Set for Transport

Easy Set for Transport

There's no need to remove tine arms when converting the RA2071T into transport position. The swath board is lifted hydraulically and transport width is reduced to 9'10" (to reach 8'1" the tine arms can be removed).

Exceptional Raking Performance

Exceptional Raking Performance

The RA2071 features eleven tine arms and four double tines per arm on the front rotor and twelve tine arms, and four double tines per arm on the rear rotor to provide high tine frequency. This ensures clean raking performance in all types and volumes of crop.

Kubota TerraLink System

Kubota TerraLink System

The Kubota TerraLink System provides excellent ground contour following between the two rotors and the ground. The TerraLink system has been developed by Kubota engineers to ensure that each rotor does not affect the other rotor and maintains optimal positioning of the rotor to the ground in all field conditions.

Flexible Raking

Flexible Raking

The trailed RA2071T EVO is designed to work in a variety of crop conditions. The twin rotors work independently from each other, making it possible to collect either one large swath or two smaller swaths.

RA2071T EVO

RA2071T EVO

HP

Specifications

Capacity Theo. ( Acres/h)

18

Carrier Arm Compensating

N/A

Continuous Cam Track

N/A

Detachable Tine Arms

Standard

Farm Line

Standard

Fixed Tandem Axle

Rear optional

Gauge Wheel 16"

Optional

Height Adjustment

Hydraulic / Mechanical

Linkage Drawbar

Standard

Locking Catch For Slopes

N/A

Lower Links (2-pt.)

N/A

Number Of Arms Per Rotor

11/12

Number Of Double Tines/ Arm

4

Number Of Rotors

2

Parking Height Ft.

N/A

Pivoting 3-pt Headstock (cat.)

N/A

Pivoting Tandem Axle

N/A

Pro Line

N/A

Road Lights

Standard

Rotor Diameter Ft.

9' 8"

Stand. Tires ( Carrying Frame)

N/A

Swath Delivery

Left

Tine Diameter In.

.35"

Tires ( Rotors)

18.5x8.5-8

Transport Length Ft. (m)

24' 9"

Transport Width Ft. (m)

9' 10"

Warning Panels

Standard

Weight Lbs. (kg)

2976

Working Width Ft. (m)

21' 8"/23' 3"
