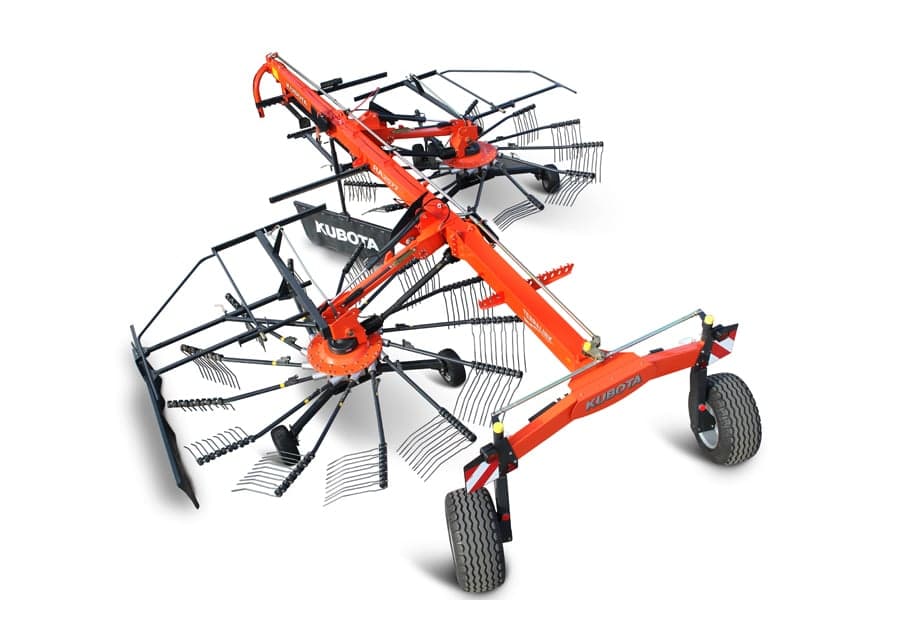

The Kubota RA2577 offers excellent flexibility and can collect crops from multiple passes into a single swath. Raking performance is accurate with quality tines on the front and rear rotors. A working width of 24’ and swath width of 25’3” make covering a lot of ground easy while maintaining good quality. This rake is durably built with wide diameter tines and a unique maneuverability system for rear wheel steering. The RA2577 won’t let you down!

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • RAKE SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!

    RAKE SERIES
Exceptional Raking Performance

Exceptional Raking Performance

The RA2577 features twelve tine arms and four double tines per arm on the front rotor, and thirteen tine arms and five double tines per arm on the rear rotor to provide high tine frequency. This ensures clean raking performance in all types and volumes of crop.

Fast and Safe Transport

Fast and Safe Transport

For fast and safe transport from field to field, RA2577 can be optionally equipped with a hydraulic swath board. The transport width of this model is 9'9".

Outstanding Durability

Outstanding Durability

Kubota rakes are equipped for maximum raking performance. The RA2577 rakes include heavy duty 0.39" wire diameter tines for outstanding durability.

Maintenance Free ProLine Gearbox

Maintenance Free ProLine Gearbox

Kubota RA2577 Rakes are fitted with the renowned ProLine gearbox, with its maintenance-free oil bath solution. The shape of the massive 15.7" curve disc allows the tine arms to leave the crop faster, leaving a more uniform swath shape.

High Capacity Working Width

High Capacity Working Width

The RA2577 ProLine double rotor rake delivers a working width of 24’ raking width & 25'3" with swath. The high capacity side delivery concept adds excellent flexibility in swath formation and allows you to collect crop from a working width of up to 48’ into one swath.

ProLine Rakes

ProLine Rakes

Kubota's RA2577 is a ProLine side delivery double rotor rake. ProLine rakes feature a drive system, which houses an oil-immersed pinion and crown wheel. The fully enclosed design of the gearbox ensures full and permanent lubrication, making the entire system absolutely maintenance-free. Our extensive experience guarantees that our machines come with well-proven technology. The hardened cam track is adjustable and, with a large 15.7” diameter, it gives positive guidance to the tine arms and a very quiet, smooth running machine.

RA2577

RA2577

HP

Specifications

Capacity Theo. ( Acres/h)

21

Carrier Arm Compensating

N/A

Continuous Cam Track

Standard

Detachable Tine Arms

Standard

Farm Line

Standard

Fixed Tandem Axle

N/A

Gauge Wheel 16"

N/A

Height Adjustment

Mechanical

Linkage Drawbar

N/A

Locking Catch For Slopes

N/A

Lower Links (2-pt.)

Standard

Number Of Arms Per Rotor

11/13

Number Of Double Tines/ Arm

4/5

Number Of Rotors

2

Parking Height Ft.

12' 4" / 14' 5"

Pivoting 3-pt Headstock (cat.)

N/A

Pivoting Tandem Axle

N/A

Pro Line

Standard

Road Lights

Standard

Rotor Diameter Ft.

12'

Stand. Tires ( Carrying Frame)

NA 380/55-17

Swath Delivery

Left

Tine Diameter In.

.39"

Tires ( Rotors)

16x6.5-8

Transport Length Ft. (m)

19' 4"

Transport Width Ft. (m)

9' 9"

Warning Panels

Standard

Weight Lbs. (kg)

5049

Working Width Ft. (m)

25' 3"
